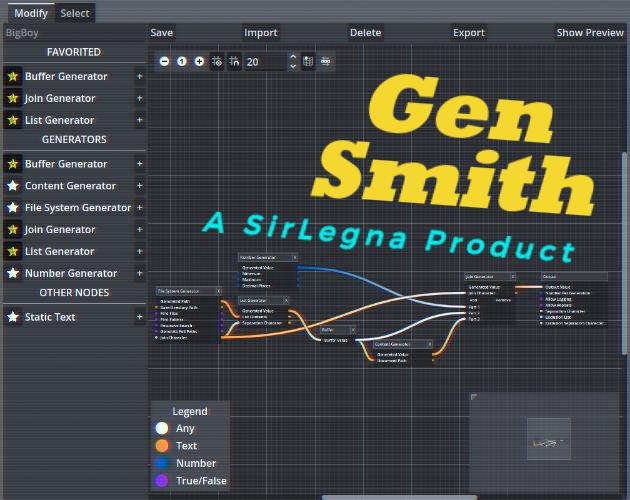

Graph Nodes |
| Name - Summary | Inputs | Outputs |
| Output Generator - All Generator graphs must have this. It is the node which the output is inputted into upon the Generation button being pressed | - Output Value - This can be anything and is the final value of the generation.
- Number Per Output - The number of generations that occurs per each Generation button is pressed
- Allow Logging - Determine if the result will be added to the history above
- Allow Repeats - Allows the output per generation button to repeat the result
- Separation Character - If there are multiple outputs then determine the character to put between them
- Exclusion List - Prevent specific results from showing up
- Exclusion Separation Character - For the Exclusion List, you can use any character you would like to separate the options.
| None |
| Buffer Generator - Stores a result without changing it. This is needed since multiple outputs from the same generator node will result in a new evaluation | - Buffer Value - This is the input which will be stored in the Buffer Generator
| - Buffer Value - This is the output which is unchanged from the input
|
| Content Generator - Open up a Document (File) Path and read the content as text | - Document Path - A valid path to a file
| - Generated Value - The raw text from the file
- Document Path - A path to a file defined by the Preview side
|
| File System Generator - Create a list of all files/folders from a given directory. | - Base Directory Path - A valid path to the directory which you want to navigate within
- Find Files - Checked if you want to get any files it finds
- Find Folders - Checked if you want to get any folders it finds
- Recursive Search - Checked if you want it to open subfolders and continue searching
- Generate Full Paths - Checked if you want it to return the full path to a file / folder otherwise it just returns the filename/folder name
- Join Character - What text you would like it to place between each file / folder it finds
| - Generated Value - The list of files/folders with the join character between each of them
- Base Directory Path - A path to a folder defined by the Preview side
- Find Files - A true or false value which on the Preview side appears to reference Finding Files
- Find Folders - A true or false value which on the Preview side appears to reference Finding Folders
- Recursive Search - A true or false value which on the Preview side appears to reference Recursive Search
- Generate Full Paths - A true or false value which on the Preview side appears to reference Generate Full Paths
- Join Character - A text value which appears on the Preview side for Join Character
|
| Join Generator - Combine all Parts with the Join Character between them. There can never be less than 2 parts, however you can add as many parts as you would like. Add button adds a new part. Remove button removes the last part unless only 2 are left | - Join Character - A text value which will be place between each part
- Part N - A value which will appear in order with Join Character between them
| - Generated Value - The text value of all parts connected together with the Join Character between them
- Join Character - A text value which appears on the Preview side for Join Character
|
| List Generator - Takes a text which is formatted as a list, and output a single option from that list using the Separation Character to determine when an option begin and ends | - List Contents - A text value which is the list
- Separation Character - A text value which appears between each option in the List Contents
| - Generated Value - The text value of the option which was selected
- List Content - A text value of the list that appears on the Preview side for List Content
- Separation Character - A text value which appears between each option found in the List Content which appears on the Preview side for Separation Character
|
| Number Generator - Generates a number between a min and max, with a certain number of decimal places after it. If there are no decimal places, then it is inclusive otherwise it is exclusive | - Minimum - A number value which can have decimal places. and is the lowest value inclusively if no decimal places otherwise exclusively
- Maximum - A number value which can have decimal places and is the highest value inclusively if no decimal places otherwise exclusively
- Decimal Places - A number of decimal places you would like to see on the output
| - Generated Value - The number value of the random value between the minimum and maximum with a number of defined decimal places.
- Minimum - A number which appears on the Preview side for the Minimum value of the generator
- Maximum - A number which appears on the Preview side for the Maximum value of the Generator
- Decimal Places - A number which is the number of decimal places as defined on the Preview Side
|
| Static Text - Able to to input text which can be used in the generator and not appear on the Preview side | None | - The text place at this point, as it is typed
|
